ONUs Overview
Overview

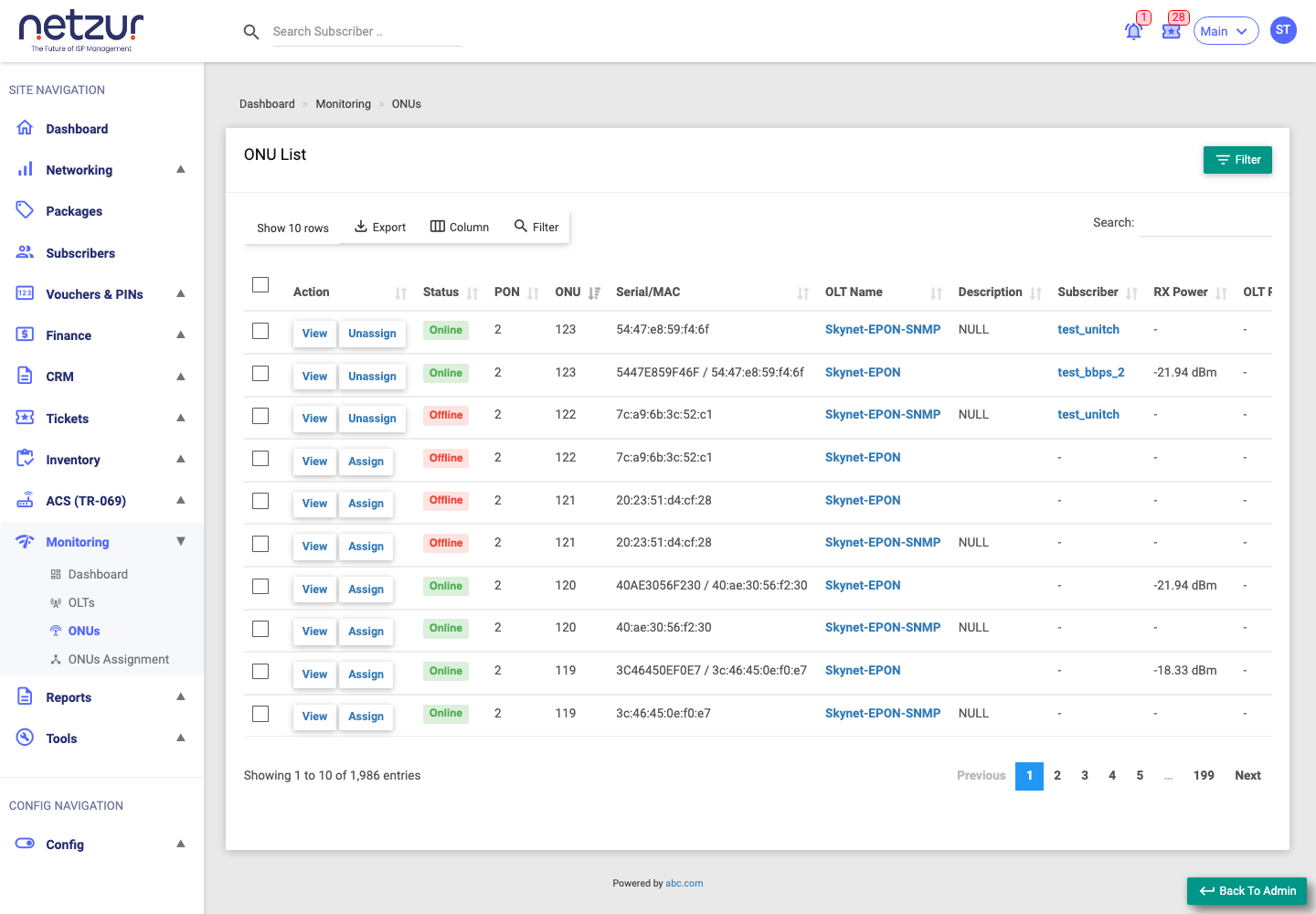

The ONU List shows every customer ONU across all your OLTs in one place — their status, signal levels, and which subscriber they belong to. It's where you search for a specific customer's box or hunt down every ONU running weak.
Required Permissions
- ONU → List; Assign / Unassign and per-ONU View have their own permissions.
Navigation
Monitoring → ONUs
The columns
| Column | Meaning |
|---|---|
| (checkbox) | Select ONUs for the bulk Assign action. |
| Action | View (opens ONU details), and Assign or Unassign. |
| Status | Online / Low Signal / Offline badge. |
| PON | The PON port on the OLT. |
| ONU | The ONU's index on that port. |
| Serial / MAC | The ONU's serial number and/or hardware address. |
| OLT Name | The parent OLT (links to its page). |
| Description | A label on the ONU (often the customer's name). |
| Subscriber | The linked account (or - if unassigned). |
| RX Power | Light the ONU receives — the key signal-health figure (dBm). |
| TX Power | Light the ONU transmits back (dBm). |
| OLT RX Power | Light the OLT receives from this ONU (dBm). |
| Last Seen / Last Poll | When the ONU was last online / last read. |
| Distance | Fibre distance from the OLT. |
| Temperature / Voltage | The ONU's optical module readings. |
Filters
The Filter button reveals: OLTs (and then its PONs), Status (Online / Offline / Low Signal), Assignment (Assigned / Unassigned), and RX power bands (≥ −25 healthy, −25 to −27 marginal, below −27 weak). A Reset button clears them.
Bulk assign
Tick one or more ONUs and choose Action → Assign to link them to a subscriber in one go — see ONU Assignment. To link many ONUs to many different subscribers automatically, use the dedicated assignment screen.
Understanding the readings
Everything here comes from the last poll of the parent OLT — nothing is measured live on this page (the Last Poll column tells you how recent it is). RX Power is the most important number: the more negative the dBm, the weaker the light. An online ONU below the low-signal threshold is flagged Low Signal — connected, but at risk.
